Alation Agent

Alation Cloud Service Applies to Alation Cloud Service instances of Alation

The Alation Agent (or simply the Agent) is optional software you can install on your network to securely connect Alation Cloud Service to your on-premises data sources. After connecting the Agent to data sources that are behind your firewall, you can securely catalog metadata from those data sources to your Alation Cloud instance.

When considering use of the Agent, keep in mind the following:

  • Each Alation Cloud Service instance can support multiple Agents in different geographical locations, network segments, or security zones.

  • Each Agent can support multiple connectors and data sources.

  • The Agent only works with connectors based on the Open Connector Framework (OCF). It doesn’t support native or custom DB connectors.

  • The Agent supports RDBMS, BI, and file system connectors.

  • Newer versions of the Alation Agent now support Compose. See Compose Compatibility below for more details.

  • The Agent supports the Query Service Add-on for the Zero Data feature, which enables on-premises query execution and data profiling with results stored in your own object store. See Query Service Compatibility below for more details.

This page includes information about:

Agent System Requirements

Alation recommends running the Agent on a dedicated physical or virtual Linux machine with no other software installed. A virtual machine can be set up in a shared server environment as long as the required CPU, RAM, and HDD are allocated for the Agent.

You can install multiple Agents, each on its own machine, and connect them all with Alation Cloud Service. This may be needed if you have data sources in different geographical locations, network segments, or security zones.

Operating System

The Alation Agent is supported on the following Linux operating systems. The Agent is not supported on Windows operating systems.

Supported Operating System

Alation Agent Version

AWS Linux 2

All versions

AWS Linux 2023

1.8.10.5177 and later

CentOS 7.x (x86 64-bit)

All versions

Debian 9

All versions

Debian 10

All versions

Debian 11

1.5.0.2541 and later

Fedora 33

All versions

Fedora 34

All versions

Oracle Linux 7 (on Red Hat Compatible Kernel)

All versions

Oracle Linux 8 (on Red Hat Compatible Kernel)

All versions

Oracle Linux 8.5 (on Red Hat Compatible Kernel)

All versions

Red Hat 7.x (x86 64-bit)

All versions

Red Hat 8.x (x86 64-bit)

All versions

Red Hat 9.x (x86 64-bit)

1.5.0.2541 and later

Ubuntu 16

All versions

Ubuntu 18

All versions

Ubuntu 20

All versions

Ubuntu 22

1.5.0.2541 and later

Ubuntu 24

1.7.8.5066 and later

Hardware

The hardware requirements for the Agent depend on how many objects per data source you will be cataloging. Larger data sources require more hardware resources.

The Agent has been certified on the following hardware at the specified scale. For cases with more objects, connectors, or Agents, contact Alation.

Small Deployment

Large Deployment

Scale

# of objects per data source

5 Million

15 million

# of Agents per Alation instance

5

5

# of connectors per Agent

5

10

System Component Requirements

CPU

2 or more cores

2.5-3.1 GHz

4 or more cores

2.5-3.1 GHz

RAM

8 GB

16 GB

HDD

20 GB

40 GB

The number of Agents per Alation instance may apply if you have data sources in different geographical locations, network segments, or security zones and need to install and connect multiple Agents to your Alation Cloud Service.

Alation Cloud Service Compatibility

In the table below, find the version of Alation you’re currently using. To get the latest Alation Agent features and fixes, we recommend upgrading to the latest version of the Alation Agent that’s compatible with your version of Alation Cloud Service.

Alation provides downloads for the latest two versions of the Alation Agent on the Customer Portal. Older versions of the Agent will become unavailable as newer versions are released.

Alation Agent Version

Compatible Versions of Alation Cloud Service

1.10.0.7491

2026 latest version

1.8.16.6859

2026 latest version

1.8.15.6292

2025.3.4, 2026 latest version

1.8.15.5840

2025.1.1, 2025.1.2, 2025.1.3, 2025.1.4, all versions of 2025.3.x, all versions of 2026.x.x

1.8.14.5626

2025.1.1, 2025.1.2, 2025.1.3, 2025.1.4, 2025.1.5, 2025.3

1.8.13.5270

2025.1.1, 2025.1.2, 2025.1.3, 2025.1.4

1.8.12.5253

2025.1.1, 2025.1.2, 2025.1.3, 2025.1.4

See the Alation Agent Version History page for a full listing of historical Agent releases and compatible Alation Cloud Service versions.

Checking the Agent Version

On the Agent host machine, check the installed Agent’s version by running:

hydra version

The version number will be in the first line of the output.

Compose Compatibility

Compose Compatibility with the Agent

In order to use Compose with the Alation Agent, you must:

  • Be on Alation Cloud Service version 2022.4 or later.

  • Have Alation Agent version 1.2.1.868 or newer installed. Agent version 1.2.0.815 does not support Compose.

  • Have a supporting version of the relevant connector installed on the Agent. See the documentation for individual OCF connectors to find out if a particular connector can connect to Compose through the Alation Agent.

Query Service Compatibility

Query Service Add-on Compatibility with the Agent

In order to use the Query Service Add-on (Zero Data) with the Alation Agent, you must:

  • Be on Alation Cloud Service version 2026.1 or later.

  • Have the latest compatible version of the Alation Agent installed. See the Agent Release Notes for version details.

  • Have a supported object store (AWS S3 or Azure Blob Storage) configured.

  • Ensure the user’s browser can reach the Agent’s Zero Data ingress endpoint directly.

See Query Service Add-on for more information.

Zero Data Support Matrix

The Query Service Add-on uses a K3s-based runtime that has tighter requirements than the standard Alation Agent. The matrix below shows which Agent host configurations support Zero Data.

Note

Red Hat Enterprise Linux is the only operating system that is currently tested with the K3s-based Zero Data runtime. Other RHEL-family distributions (AWS Linux, Oracle Linux, CentOS) are expected to work because they use the same RPM and kernel toolchain, but they aren’t part of the regular test matrix yet. If you need a guarantee for a specific distribution, contact Alation Support.

Operating System Support

Host Operating System

Zero Data Support

Notes

Red Hat Enterprise Linux 8.x (x86_64)

Supported

RPM-based install with the --zerodata flag.

Red Hat Enterprise Linux 9.x (x86_64)

Supported

RPM-based install with the --zerodata flag.

AWS Linux 2 (x86_64)

Supported

RPM-based install with the --zerodata flag.

AWS Linux 2023 (x86_64)

Supported

RPM-based install with the --zerodata flag.

Oracle Linux 8 / 8.5 (Red Hat-compatible kernel)

Supported

RPM-based install with the --zerodata flag.

CentOS 7.x (x86_64)

Supported

RPM-based install with the --zerodata flag.

Debian 9 / 10 / 11

Not supported

The K3s-based zerodata package is RPM-only. Use a Red Hat-family host instead.

Ubuntu 16 / 18 / 20 / 22 / 24

Not supported

The K3s-based zerodata package is RPM-only. Use a Red Hat-family host instead.

Fedora 33 / 34

Not supported

The zerodata package doesn’t support installation on Fedora.

Installation Mode Support

Installation Mode

Zero Data Support

Notes

Root install on a supported RHEL-family OS

Supported

Default and recommended mode.

Rootless install

Not supported

The zerodata package can’t be installed in rootless mode. The standard Agent still supports rootless; only the Zero Data add-on is excluded.

Air-gapped (no outbound internet)

Supported with caveats

All K3s container images ship inside the zerodata package; no internet pull is required at install time. See the note below.

Note

Air-gapped installations succeed only if the Agent host can reach an OS package repository (internal mirror) for system dependencies such as iptables. If the host is fully air-gapped with no local repository configured, yum install may fail when a system dependency isn’t already present. Pre-install the required system packages, or configure access to an internal package mirror before running the installer.

Architecture Support

CPU Architecture

Zero Data Support

Notes

x86_64

Supported

All Zero Data packages are built for x86_64.

ARM (aarch64)

Not supported

Zero Data packages aren’t built for ARM.

Object Store Support

Object Store

Zero Data Support

Notes

AWS S3

Supported

Authentication through IAM role on the Agent host or IAM user with access keys.

Azure Blob Storage

Supported

Authentication through OIDC federated credential (Microsoft Entra ID).

Google Cloud Storage

Not supported

Not yet implemented.

On-premises S3-compatible (MinIO, Ceph)

Not supported

Not yet implemented.

Hardware Requirements

The Zero Data Agent package adds K3s, the Query Service container, the Traefik ingress gateway, the JWT gateway, and the Zero Data healthcheck service to the Agent host. Provision additional resources on top of the standard Agent baseline:

Component

Additional CPU / RAM

Notes

K3s control plane

1 core / 1 GB RAM

Single-node cluster managed by the Agent.

Query Service

1 core / 2 GB RAM

Scales with concurrent query and sampling workload.

Traefik ingress

0.5 core / 256 MB RAM

Terminates TLS for the user-facing ingress endpoint.

Healthcheck service

0.25 core / 128 MB RAM

Reports K3s pod and ingress status to Alation Cloud Service.

For overall sizing, add these to the small or large hardware footprints in Hardware above.

If you need a configuration that isn’t listed as supported, contact Alation Support.

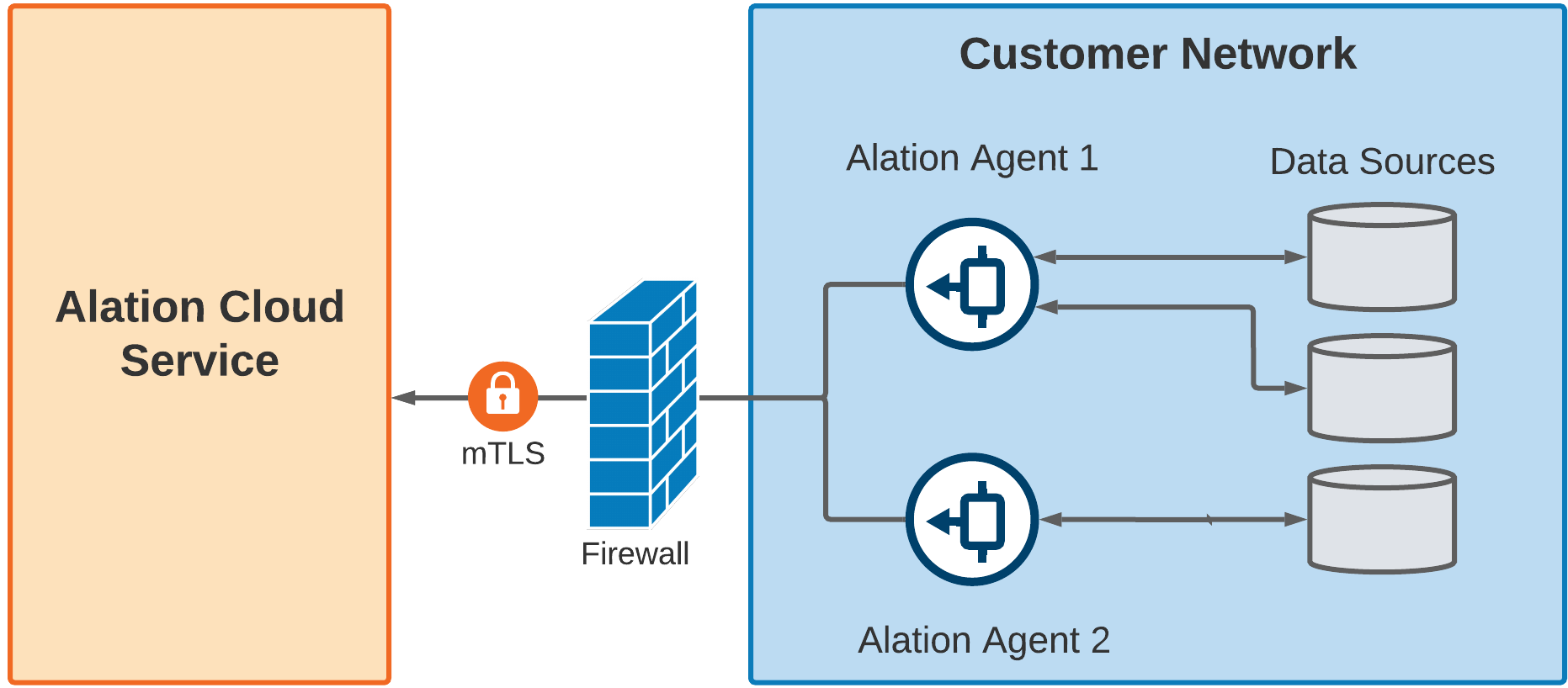

Architecture

The Alation Agent is installed within your network and connects to the data sources as well as Alation Cloud Service. To connect to your data sources, the Agent uses connectors based on the Open Connector Framework (OCF).

Each Alation Cloud Service instance can support multiple Agents in different geographical locations, network segments, or security zones.

Each Agent can support multiple connectors and data sources.

../../_images/Agent_ArchitectureDiagram.png

Security

Alation designed the agent to comply with security policies that only allow outbound connections. It uses mutual TLS and end-to-end encryption to secure communications between the Agent and Alation Cloud Service. Once the connection is established, Alation Cloud Service can securely send requests to the Agent.

The Agent is stateless and doesn’t store any customer information.

Establishing a Secure Connection

Alation uses digital certificates to provide end-to-end encryption between the Agent and Alation Cloud Service. After installing the Agent software in your network, you’ll generate a certificate signing request (CSR) on the Agent machine. You then upload the certificate signing request to the Alation Cloud Service. Alation Cloud uses the CSR to create a TLS certificate that is used to establish a trusted relationship between the Agent and Alation Cloud Service. You’ll install this TLS certificate on the Agent to finalize the trusted connection.

Alation uses the AWS Certificate Manager (ACM) Private Certificate Authority for generating all Agent certificates. ACM is a highly-available private certificate authority service. Using ACM as the root certificate ensures that only certificates generated from that certificate authority can establish trusted communication with the Alation Cloud Service.

You can renew or revoke the certificate at any time. See Work with the Agent’s Certificates.

Once the required certificate is in place, the Agent will initiate an outbound TLS v1.3 connection to Alation Cloud Service. The Agent and Alation Cloud Service will mutually authenticate.

  • Alation Cloud Service validates that the Agent’s certificate was signed by the ACM Private Certificate Authority.

  • The Agent validates Alation Cloud Service’s certificate authority trust chain, the certificate’s expiration and revocation status, and the ID of your Alation Cloud instance.

Continuing Communication

This TLS connection ensures that all subsequent communication is fully encrypted and allows Alation Cloud Service and the Agent to transfer metadata during metadata extraction and query log ingestion. The connection is persistent, so future queries or extraction requests can be executed immediately.

If network interruptions ever break the connection between the Agent and your Alation Cloud instance, the Agent will attempt to reconnect. It keeps trying to connect using an exponential backoff algorithm. Once the Agent can connect to your Alation Cloud instance again, it will reauthenticate and reestablish a secure connection.

Any jobs, such as metadata extraction, that were underway will automatically restart as long as the connection is reestablished within 30 seconds. If it takes longer than that, you’ll have to restart the job manually.

Further Reading

Explore the following topics for more help with the Alation Agent:
