Top 5 Data Mapping Tools: Comparison of Key Features for 2026

Enterprises face relentless data challenges. For instance, their data often sprawls across dozens of systems—from CRMs and ERPs to data lakes and spreadsheets. This makes it difficult to trace where information comes from, how it changes over time, and whether it’s trustworthy.

Analysts spend hours searching for the right data, engineers have to piece together lineage by hand, and leaders are left questioning reports riddled with gaps and inconsistencies. Disconnected data that's difficult to trace can also lead to higher compliance risk and missed business opportunities.

Data mapping tools address such challenges by automatically uncovering relationships and data flows across systems, eliminating blind spots that slow analysis and increase compliance risk. Learn about some of the top tools for transforming complex data environments into clear, navigable foundations for faster decisions and enterprise-wide trust.

Key takeaways

• Data mapping connects fragmented data systems and enables data-driven decision-making at scale.

• Visualization and automation are critical functions that reduce errors and speed up delivery.

• Low-code expands accessibility and empowers non-technical staff to participate in data mapping initiatives.

• Layering lineage, metadata documentation, and business glossaries ensures mapped data is accurate and compliant.

• Pairing mapping tools with data intelligence platforms like Alation strengthens governance, collaboration, and AI readiness across the enterprise.

What are the top 5 data mapping tools?

Selecting the right data mapping tool is a strategic decision—especially in 2026, when mapping underpins use cases like cloud data migration, regulatory compliance, and AI model development. As enterprises seek to unify fragmented data environments, mapping has become critical not only for supporting AI-driven initiatives but also for leveraging AI itself to automate tasks like schema detection and lineage tracing.

To simplify your organization’s search for a data mapping tool, here are five of the most commonly used options and their key features:

1. Microsoft SQL Server Integration Services (SSIS)

The Microsoft SSIS platform focuses on ETL processes that are relevant to data warehousing and enterprise data management. It also provides a set of data flow components to extract, transform, and load data between heterogeneous data sources. Overall, it offers strong support for data type mappings and column-level data flow control.

Like other tools, SSIS allows users to visually build complex data pipelines with granular control over data transformations. An additional advantage is its extensive compatibility with Microsoft SQL Server and other platforms through connectors and data type mappings.

Key features:

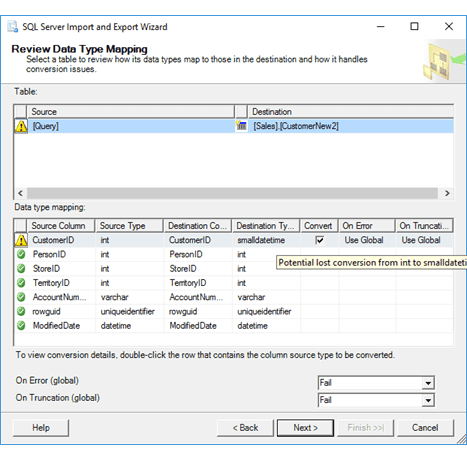

• Customizable data type mapping: SSIS uses XML-based mapping files to define and adjust data type conversions between source and target systems within SQL Server ETL workflows. Different from broader enterprise metadata mapping, these schema-level mappings standardize data types and ensure compatibility across databases.

• Alation integration: As one data analyst says, “The best part of linking SSIS with Alation is [it’s] like having a map for your data. It automatically tracks where your data comes from and what happens to it, saving you time and headaches!” Thanks to this integration, you can access automated lineage tracking, enhanced visibility into data flows, and streamlined governance.

• Visual data flow designer: Within SQL Server Data Tools—the development environment for SSIS—a drag-and-drop interface enables users to design and debug data mappings.

Limitations:

• Although it’s powerful, SSIS is mainly for the Microsoft ecosystem. This may limit ease of use or integration options with some non-Microsoft platforms without additional configuration or connectors.

• According to TrustRadius ratings, this platform ranks below the category average for some features adjacent to mapping, such as data transformations.

2. Talend Data Mapper

Talend Data Mapper is part of the broader Talend Data Integration tool. Like the other data mapping solutions here, it helps organizations visually design, transform, and map complex data across diverse systems. It’s a common option for enterprise-scale data mapping projects because it supports a broad range of data formats and facilitates efficient integration workflows.

Key features:

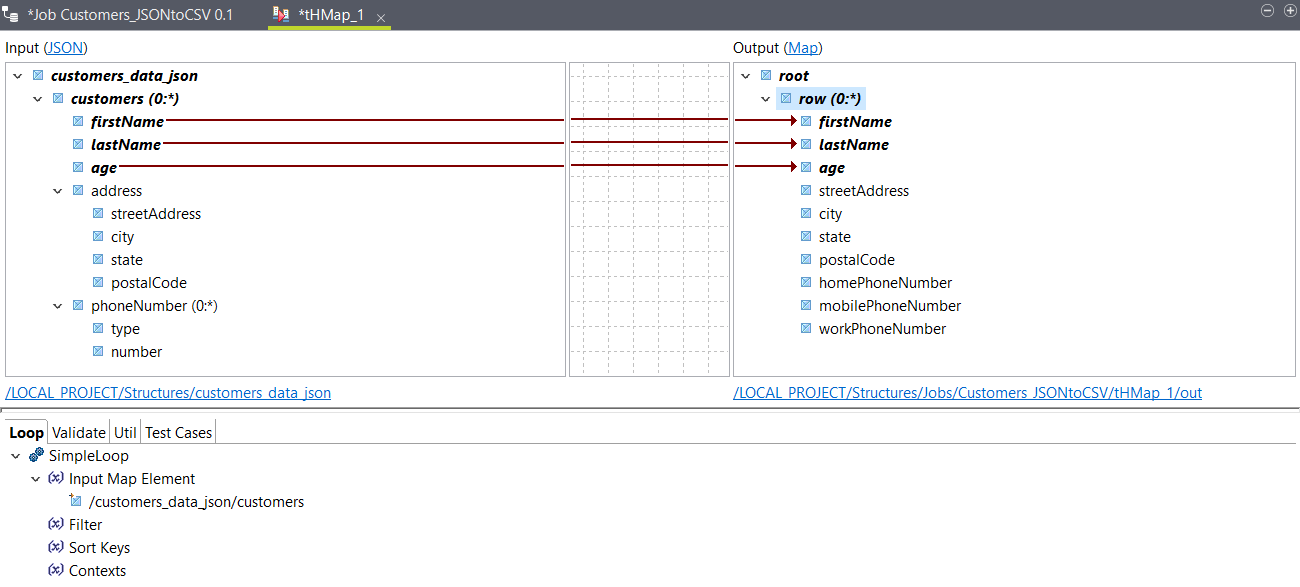

• Visual mapping interface: Although Data Mapper is mainly for technical individuals, Talend also offers a drag-and-drop user option for designing mappings. Relative to some alternatives, this simplified user experience can aid in complex transformations and reduce development time.

• Support for multiple data formats: It handles various data formats, such as XML and JSON. It also supports databases for integration across heterogeneous sources.

• Reusable mapping components: Data Mapper enables users to save and reuse mapping components. This capability improves consistency and accelerates future data integration tasks.

Limitations:

• One user noted on G2 that “[Talend’s] pricing model has changed significantly” since its acquisition by Qlik. Other reviews also mention cost as a downside.

• Some users have encountered performance issues and note that Talend is not necessarily quick to update the tool or address errors.

3. MuleSoft Anypoint Platform

MuleSoft Anypoint Platform is an integration platform as a service (iPaaS) that focuses on API-led connectivity. Its goal is to enable seamless data and application integration across on-premises, cloud, and hybrid environments.

Overall, this tool emphasizes connectivity and reusability. It simplifies integration through pre-built connectors and a visual drag-and-drop mapping interface within Anypoint Studio.

Key features:

• DataWeave transformation language: MuleSoft’s native language for data mapping and transformation enables complex, real-time conversions and manipulations of data structures. As a result, it’s highly scalable and ideal for handling diverse data formats within complex integration scenarios.

• Automated data mapping functionality: In addition to providing graphical tools for mapping data elements, Anypoint can auto-map straightforward data fields with identical names. This capability saves time and prevents human error.

• Extensive connector library: Pre-built connectors for popular enterprise applications and databases reduce development time by enabling direct data source integrations.

Limitations:

• DataWeave’s syntax and capabilities are incredibly complex and require coding proficiency. As a result, it’s often not the best fit for catalog-based mappers or users without prior programming or scripting experience.

• Relative to other data mapping solutions, Anypoint has a high licensing cost, according to product reviews.

4. Boomi

Like Anypoint, Boomi is also a cloud-based iPaaS for connecting diverse data sources and applications, both on-premises and in the cloud. It combines a visual, drag-and-drop interface with intelligent automation to generate more accurate data mappings.

Boomi emphasizes low-code development and real-time visibility, which allows various users across technical and business roles to collaborate on integration processes.

Key features:

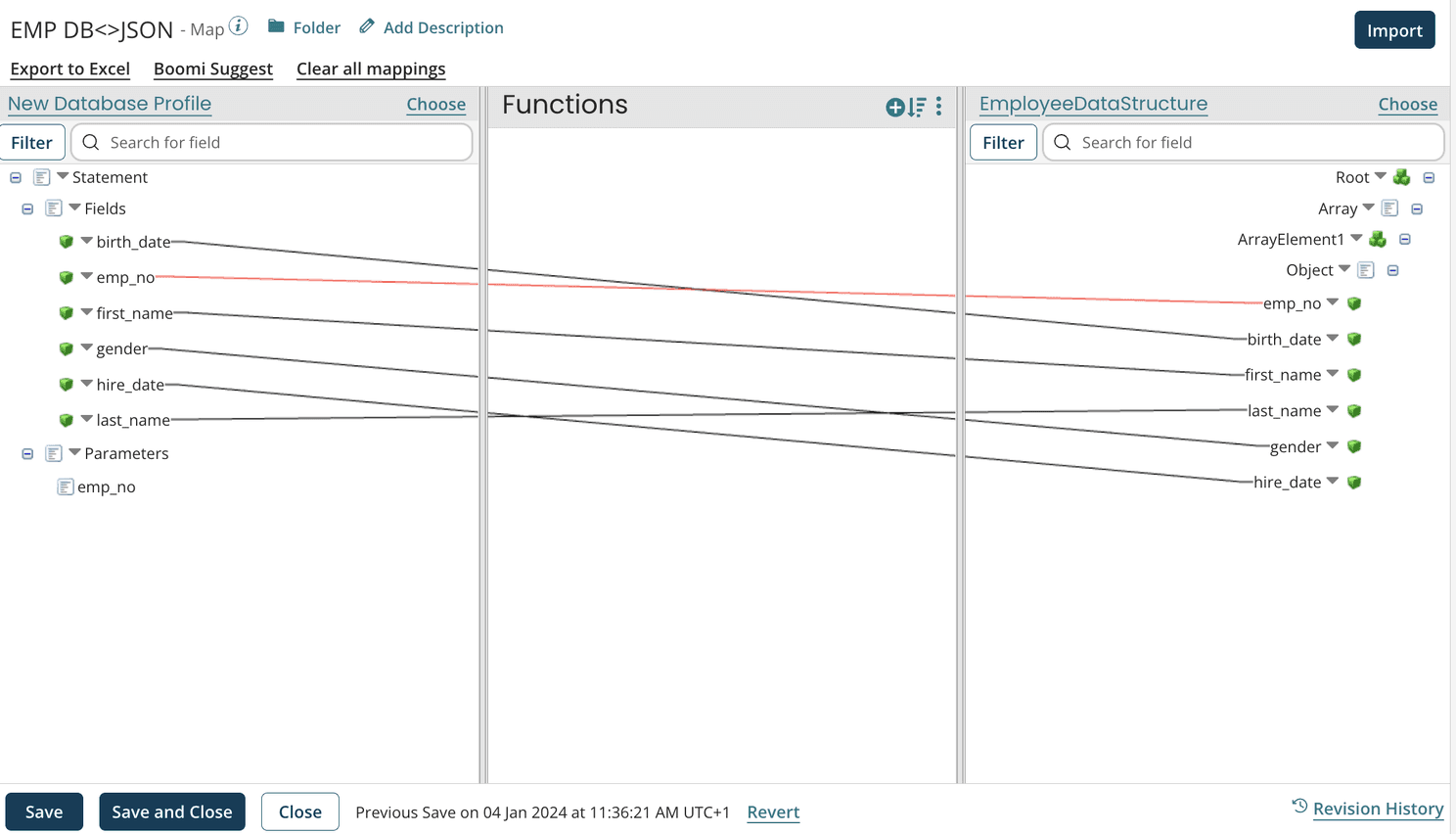

• Drag-and-drop mapping interface: The platform provides an intuitive visual interface for users to define mappings, apply transformations, and configure complex data flows without extensive coding.

• Boomi Suggest automated mapping: This unique machine learning–powered feature leverages anonymized data from thousands of user-generated mappings to provide intelligent, crowd-sourced data mapping recommendations.

• Real-time and batch processing support: Boomi supports both synchronous (real-time and API-driven) and asynchronous batch data processing workflows. This offers flexibility for varied integration scenarios and performance needs.

Limitations:

• An enterprise user notes that “Boomi has some intricacies [and] inconsistencies that [take] experience to nail out [...] Sometimes JSON and XML maps [need] a reimport of the whole profile to modify a single field.”

• Based on G2 user reviews, Boomi’s perceived cost is on the higher end. When considering how factors like volume or headcount may change, the cost may hinder organizations’ ability to scale up with this tool.

5. Oracle Integration Cloud (OIC)

Oracle Integration Cloud is yet another visual data mapping tool that simplifies the process of transferring and transforming data between source and target applications. In addition to offering user-friendly drag-and-drop functionality, this tool supports complex transformations with XPath, conditional statements, and lookups. This allows for data integration across diverse systems.

Key features:

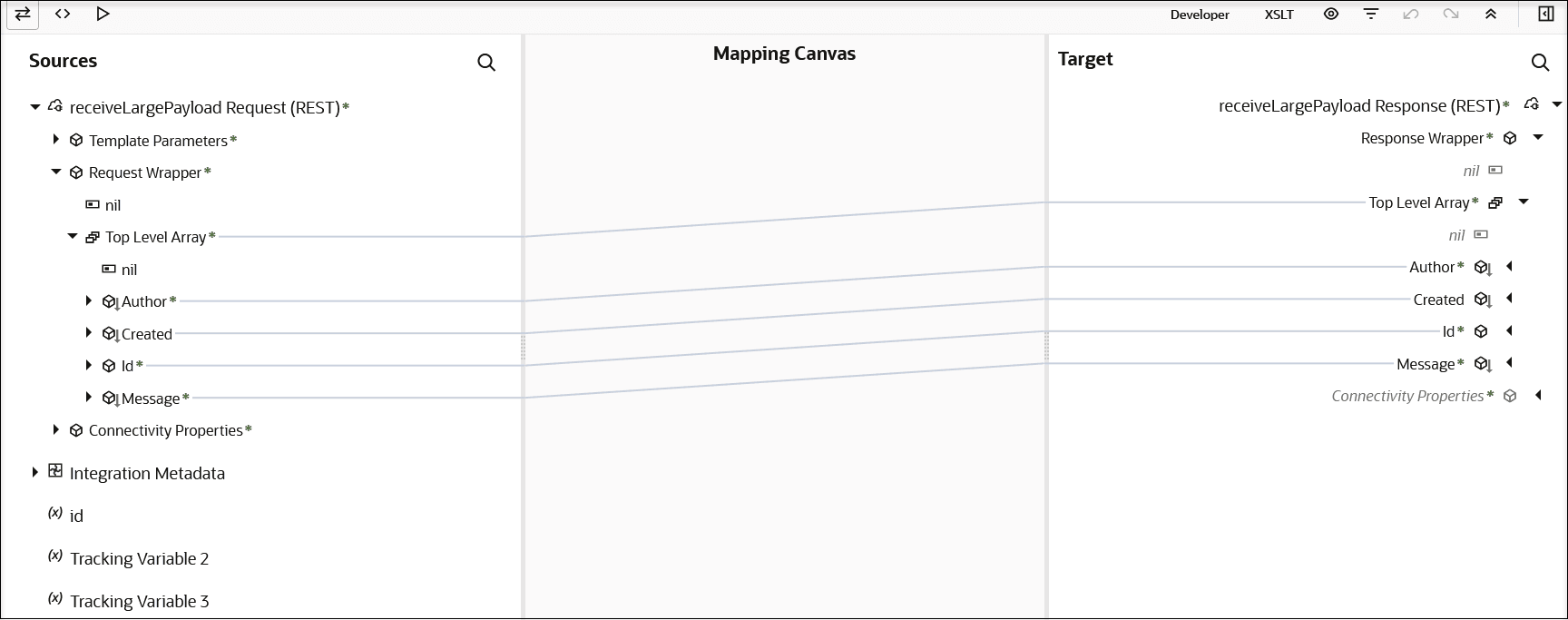

• Visual data mapper: Oracle’s data mapping solution allows drag-and-drop mapping between source and target schemas. It can support complex mappings using expressions and functions.

• Advanced transformation functions: OIC supports XPath functions, conditional logic (if/choose), looping over repeating elements, and lookups to translate differing values.

• Import and reuse mappings: This tool also enables importing XSL files to reuse complex transformation logic across multiple integrations to standardize data mapping processes.

Limitations:

• One user noted that, “Integrating multiple systems and handling large volumes of data [with OIC] can require significant compute and storage resources.”

• Gartner reviews mention that the initial setup is complex, either requiring skilled team members, assistance from the Oracle support team, or time to learn the platform and its functionalities.

Naturally, all of the above tools have their pros and cons for data mapping, especially within complex enterprise environments. However, complementing such tools with a platform like Alation amplifies the benefits and helps you to get the maximum ROI from your mapping efforts.

How does Alation support data mapping initiatives?

Although Alation doesn’t offer a traditional standalone data mapping tool, its integrated data intelligence platform does support and extend data mapping initiatives. The platform simplifies the discovery, understanding, and management of data flows across an organization. In doing so, it strengthens the governance and trust that mapping efforts depend on. This helps organizations take strides toward more confident, data-driven decision-making.

Alation also automatically captures data lineage at the column and table levels to show how data moves and changes between different systems. This capability helps technical and business users understand the data’s origin, transformation logic, and impact without needing to write code.

To strengthen data mapping, Alation combines automation and collaboration features such as these:

• Automated metadata harvesting: Alation continuously ingests metadata from connected systems to keep lineage and mappings accurate and up to date.

• Query log analysis: The platform uses SQL query history to uncover real data flows, so lineage reflects how people actually use data in practice.

• Machine learning for pattern recognition: The platform detects common transformations and relationships across assets, which reduces manual data mapping effort.

• Collaborative business context: Alation’s active metadata management solution enables users to annotate and enrich metadata with plain-language descriptions. This capability bridges the gap between technical lineage and business understanding.

This integrated approach combines technical lineage extraction with business-friendly visualization and collaboration. As a result, organizations can maintain trusted, governed data environments that are both easy to navigate and aligned with strategic goals.

What are the essential capabilities of a data mapping tool?

Each data mapping tool will have its differences. Because of this, one tool may serve your organization better than another. However, there are a handful of key features that you’ll want to make sure are available when considering a specific tool. Here are just a few:

1. A visual data mapping interface

Being able to map data visually simplifies the creation and maintenance of complex data mappings. It’s the easiest way to see data flows between source and target systems. These no-code and low-code graphical interfaces make data mapping more accessible to non-technical users, though they are still mostly developer-centric. As a bonus, they also accelerate design times and minimize errors through immediate visual feedback.

Not only do all of the tools above have this functionality, but Alation also supports this capability indirectly via its visual data lineage and relationship graphs.

2. Broad connectivity

Data mapping tools need to work across diverse data environments. This includes linking information from databases, cloud platforms, APIs, and different file formats—whether structured, semi-structured, or unstructured.

Broad connectivity is particularly important for integration-driven mapping. Extensive connectors unify data from disparate systems without costly custom integrations. This capability enables seamless data flow across hybrid environments. In contrast, governance-focused mapping tools place greater emphasis on metadata interoperability, prioritizing how data meaning and lineage are shared across platforms to ensure consistency and compliance.

In any case, to enjoy the advantages above, you can integrate Alation with a wide range of data warehouses, BI tools, and ETL platforms. Taking this step will allow you to import metadata and map data across diverse systems.

3. Data transformation and enrichment

Data transformation and enrichment functions are essential for preparing raw data to meet the requirements of target systems or analytical applications. In integration-driven mapping, these capabilities focus on cleansing, standardizing, and validating data to maintain quality and consistency across pipelines.

In a governance context, however, the emphasis shifts toward traceability and semantic enrichment—capturing how data changes, why those changes occur, and what they mean within business workflows.

By layering Alation on top, organizations can catalog and document these transformations. This process enhances lineage visibility and ensures data definitions remain consistent and governed across systems.

4. Automated schema mapping and detection

Your team can enjoy a significant efficiency boost, thanks to automated schema mapping and detection. Choosing a tool that performs these functions will enable automatic recognition of relationships between source and target data structures. As a result, you’ll be able to accelerate the onboarding of new data sources and support schema evolution over time.

Additionally, automation speeds up data integration cycles and improves data accuracy in complex or large-scale environments. It's wise to select a data mapping tool with these capabilities. (Advanced features such as query log analysis can also help automatically validate data lineage and relationships.)

5. Data quality checks and cleansing

Data quality checks and cleansing functionalities are vital to ensure mapped data is accurate, complete, and reliable before it reaches downstream systems or users. These capabilities also help teams identify and resolve a variety of issues early in the data pipeline, ranging from duplicates and missing values to inconsistencies.

In a comprehensive mapping workflow, quality also depends on governance traceability. To this end, you’ll need to document the rules, metrics, and policies that define what “good data” means across your organization.

Ultimately, high-quality, properly governed data supports confident decision-making and compliance with regulatory standards. Alation strengthens this by tracking data quality metrics, surfacing policy lineage, and maintaining visibility into how standards evolve over time.

Leave manual mapping behind with the help of AI

Data mapping tools play a critical role in helping enterprises unify data across complex ecosystems and accelerate integration. They’re also invaluable for maintaining compliance. Although each platform has strengths and trade-offs, the most successful organizations complement these tools with data intelligence solutions that add context and foster trust.

As data environments grow more complex, maintaining visibility into how data moves and transforms becomes more challenging. Mapping tools help, but gaps in governance and trust may persist without clear lineage and context.

Alation closes this gap by layering automated lineage, metadata insights, and business context to give stakeholders an end-to-end, governed view of their data pipelines. Learn more about how Alation’s data lineage capabilities strengthen visibility and trust across the enterprise.
