Configure Query Log Ingestion

Alation Cloud Service Applies to Alation Cloud Service instances of Alation

Customer Managed Applies to customer-managed instances of Alation

Enhanced Connector Enhanced connectors add extended capabilities and require a separate entitlement in addition to your Alation platform license.

Query Log Ingestion (QLI) extracts query history from MaxCompute to power Alation features such as Popularity, Top Users, Filter Information, and Join Information.

Overview

QLI uses the tenant-level SYSTEM_CATALOG.INFORMATION_SCHEMA.TASKS_HISTORY view to extract query history across all MaxCompute projects. This enables:

Feature	Description
Popularity	Shows how frequently tables and columns are queried, helping users identify important data assets.
Top Users	Identifies the most active users querying specific tables, useful for data stewardship and impact analysis.
Filter Information	Shows which columns are commonly used in WHERE clauses, indicating important filter criteria.
Join Information	Shows which tables and columns are commonly joined together, revealing data relationships.

Prerequisites

Before configuring QLI, ensure the following requirements are met:

RAM User Role:

The RAM user must be assigned the infoschema_admin role at the MaxCompute tenant level. This role grants read access to the SYSTEM_CATALOG.INFORMATION_SCHEMA schema.

To assign the role:

1. Log in to the Alibaba Cloud MaxCompute Console.

2. Navigate to Tenants > Users.

3. Find the RAM user and click Authorize.

4. Assign the infoschema_admin role.

Role Policy Details:

The infoschema_admin role includes the following permissions:

{
    "Statement": [{
            "Action": ["odps:Describe", "odps:Select"],
            "Effect": "Allow",
            "Resource": ["acs:odps:*:catalogs/system_catalog/schemas/information_schema/tables/*"]
        },
        {
            "Action": ["odps:List"],
            "Effect": "Allow",
            "Resource": ["acs:odps:*:catalogs/system_catalog/schemas/information_schema"]}
    ],
    "Version": "1"
}

Network Connectivity:

Ensure JDBC connectivity to the MaxCompute service endpoint (service.<region>.maxcompute.aliyun.com) on port 80 (HTTP).

Other Requirements:

• The MaxCompute data source must be configured and connected successfully.

• Metadata extraction (MDE) should be completed before running QLI to ensure tables are cataloged.

Configure QLI

To configure Query Log Ingestion:

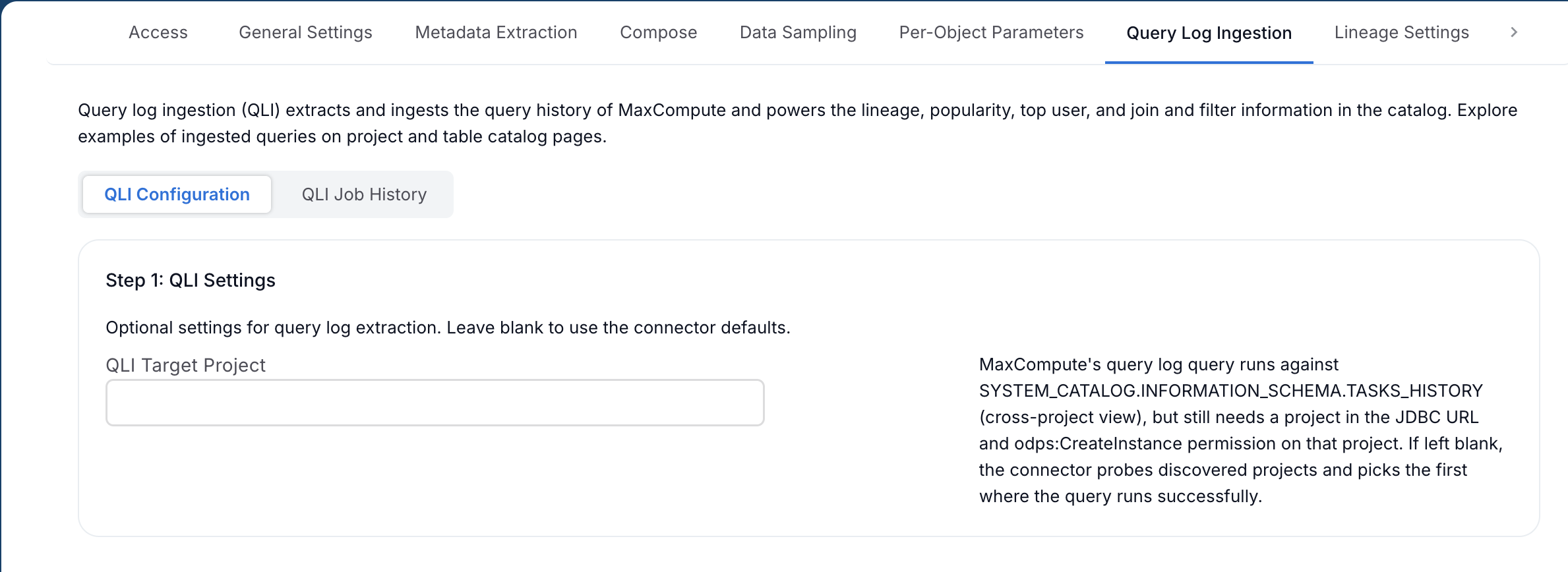

1. On the MaxCompute data source Settings page, go to the Query Log Ingestion tab.

2. Under Step 1: QLI Preview, click Preview to test QLI connectivity and view sample query logs.

   The preview dialog has two tabs:

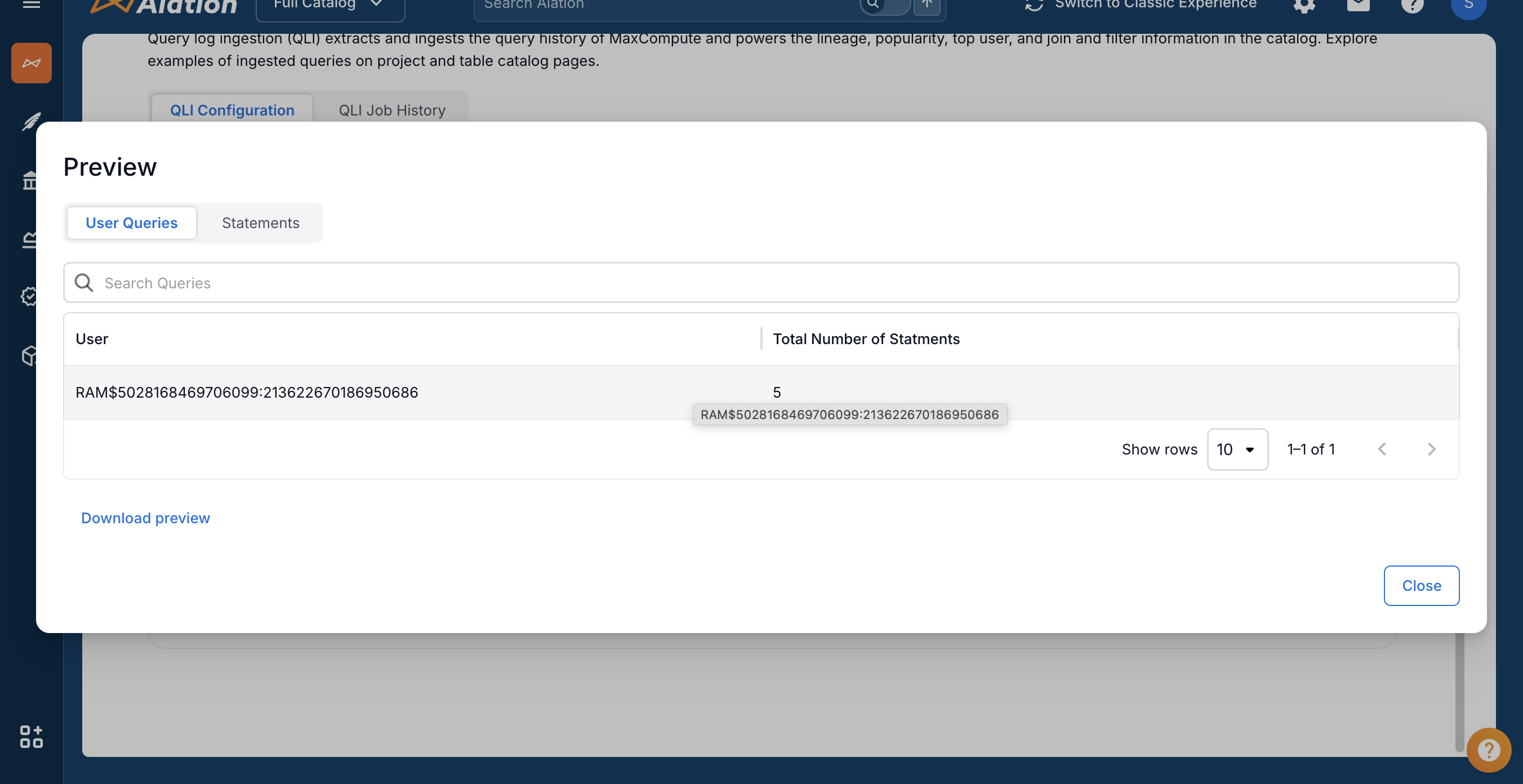

   User Queries tab: Shows users and their total number of statements.

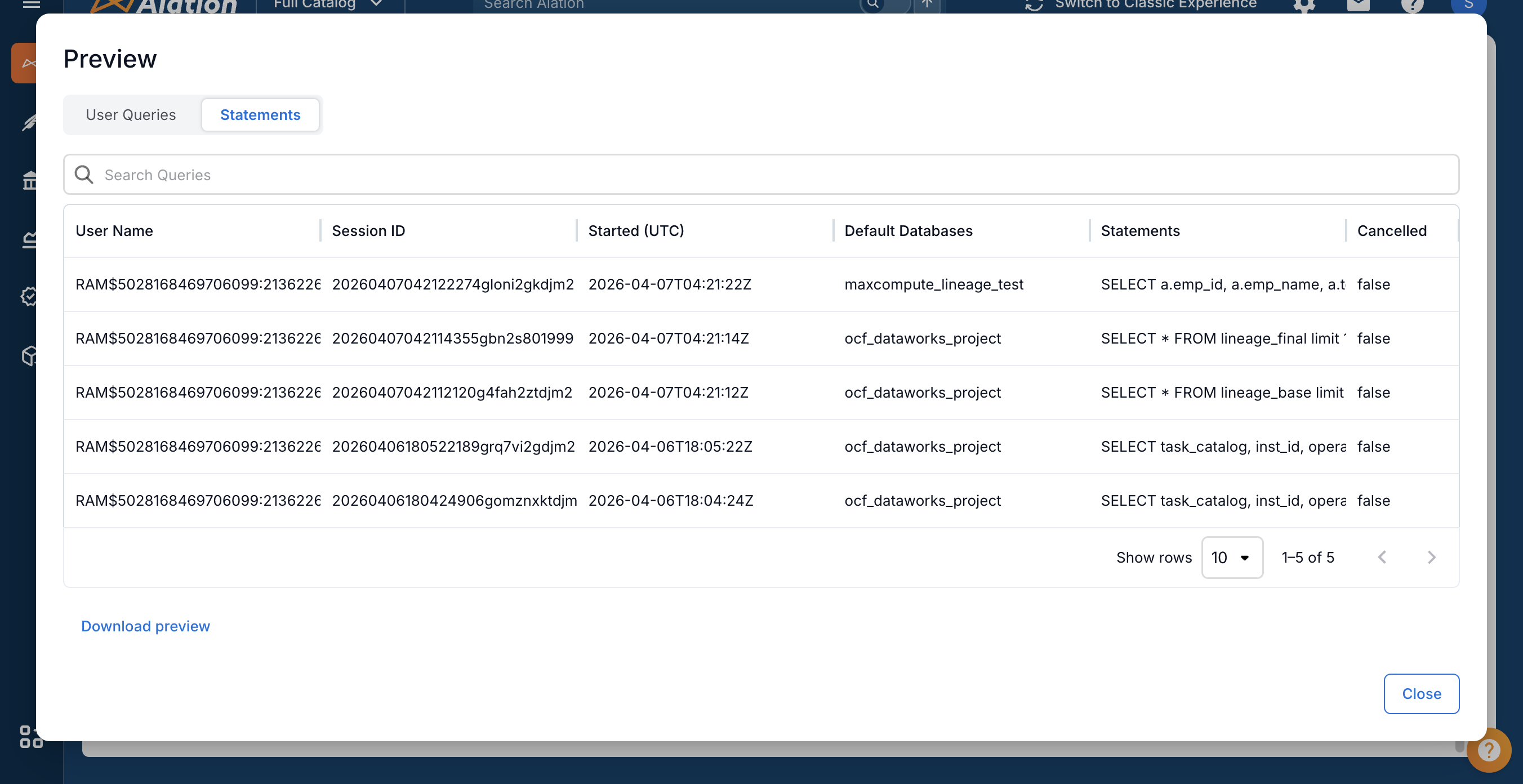

   Statements tab: Shows detailed query information including:

   • User Name

   • Session ID

   • Started (UTC)

   • Default Databases (project name)

   • Statements (SQL query text)

   • Cancelled status



3. Under Step 2: Run Extraction, configure the extraction settings:

   Setting	Description
   Date Range	The time period for query log extraction. Queries executed within this range will be ingested.
   Query Limit	Maximum number of queries to extract. Use this to limit extraction time for large environments.

4. Click Run Extraction to start QLI.

5. To enable automated QLI, turn on Enable Automated Extraction and configure the schedule.

How QLI Works

The connector uses a tenant-level approach to extract query logs:

1. Tenant-Level Access: QLI queries the SYSTEM_CATALOG.INFORMATION_SCHEMA.TASKS_HISTORY view, which contains query history across all MaxCompute projects in the tenant.

2. Cross-Project Extraction: A single JDBC connection is used to query all projects, eliminating the need for project-by-project extraction.

3. SELECT Queries Only: Only SELECT statements are ingested to power popularity metrics. INSERT, CREATE, and DDL statements are excluded (lineage is handled separately by the DataWorks API).

4. Project Filtering: If you configured project filters in MDE, the same filters are applied to QLI results.

Query Used:

SELECT task_catalog, inst_id, operation_text, status, owner_name,
       start_time, end_time, task_type, cost_cpu, task_name
FROM SYSTEM_CATALOG.INFORMATION_SCHEMA.TASKS_HISTORY
WHERE ds >= '<start_date>' AND ds <= '<end_date>'  -- Date format: yyyyMMdd (e.g., 20260401)
AND task_type = 'SQL'
AND UPPER(SUBSTR(TRIM(operation_text), 1, 6)) = 'SELECT'
ORDER BY start_time DESC

Extracted Data

QLI extracts the following information for each query:

Field	Description
Query Text	The SQL statement that was executed.
User Name	The RAM user who executed the query (owner_name).
Project Name	The MaxCompute project where the query was executed (task_catalog).
Start Time	When the query started executing.
End Time	When the query finished executing.
Duration	Query execution time in seconds.
Status	Query status (Terminated, Cancelled, Failed).
Instance ID	Unique identifier for the query instance (inst_id).

QLI Features in Alation

After QLI extraction completes, the following features become available in the Alation catalog:

Popularity

Popularity metrics appear at schema, table, and column levels, showing how frequently each object is queried.

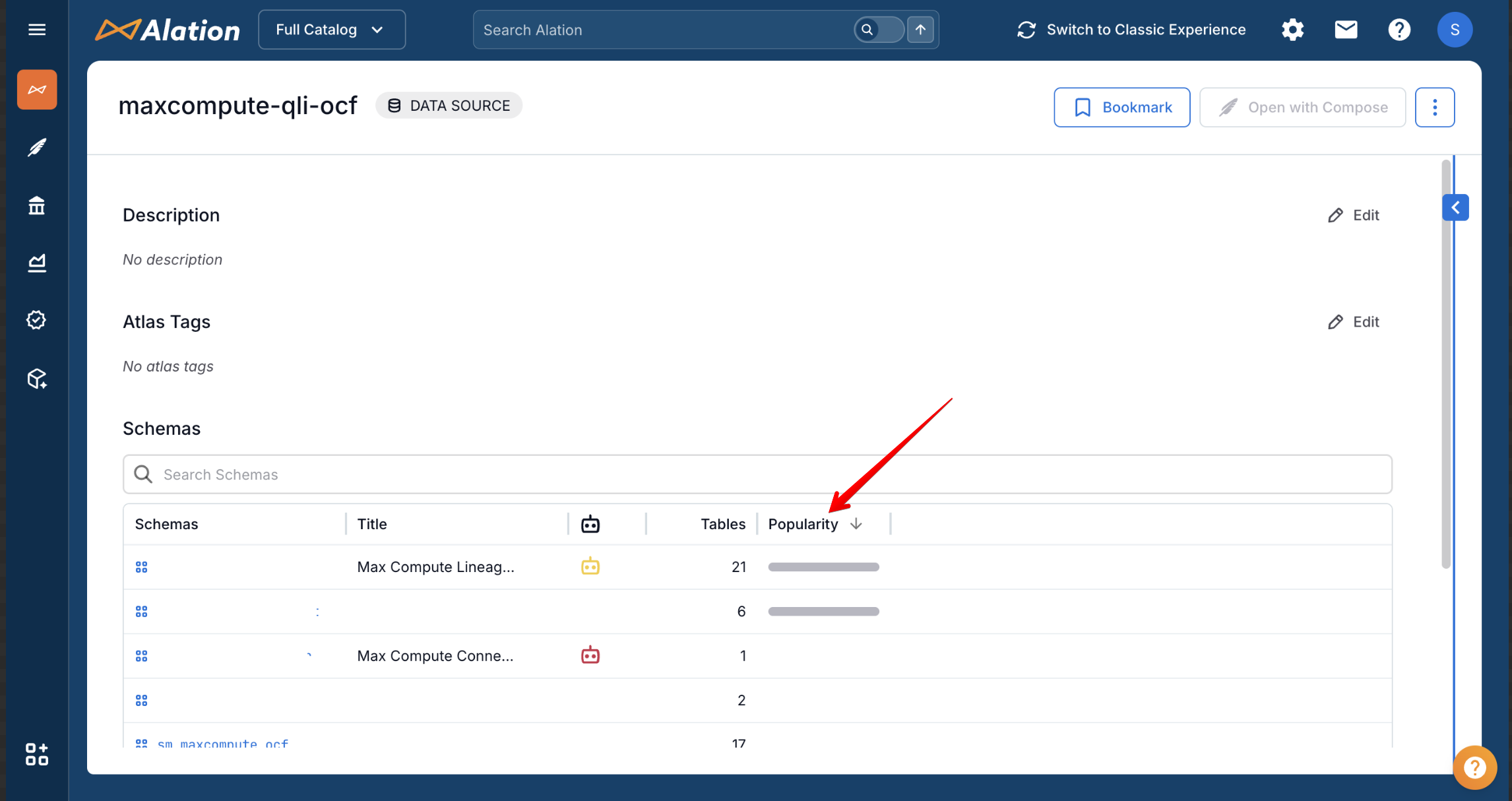

Schema-level popularity:

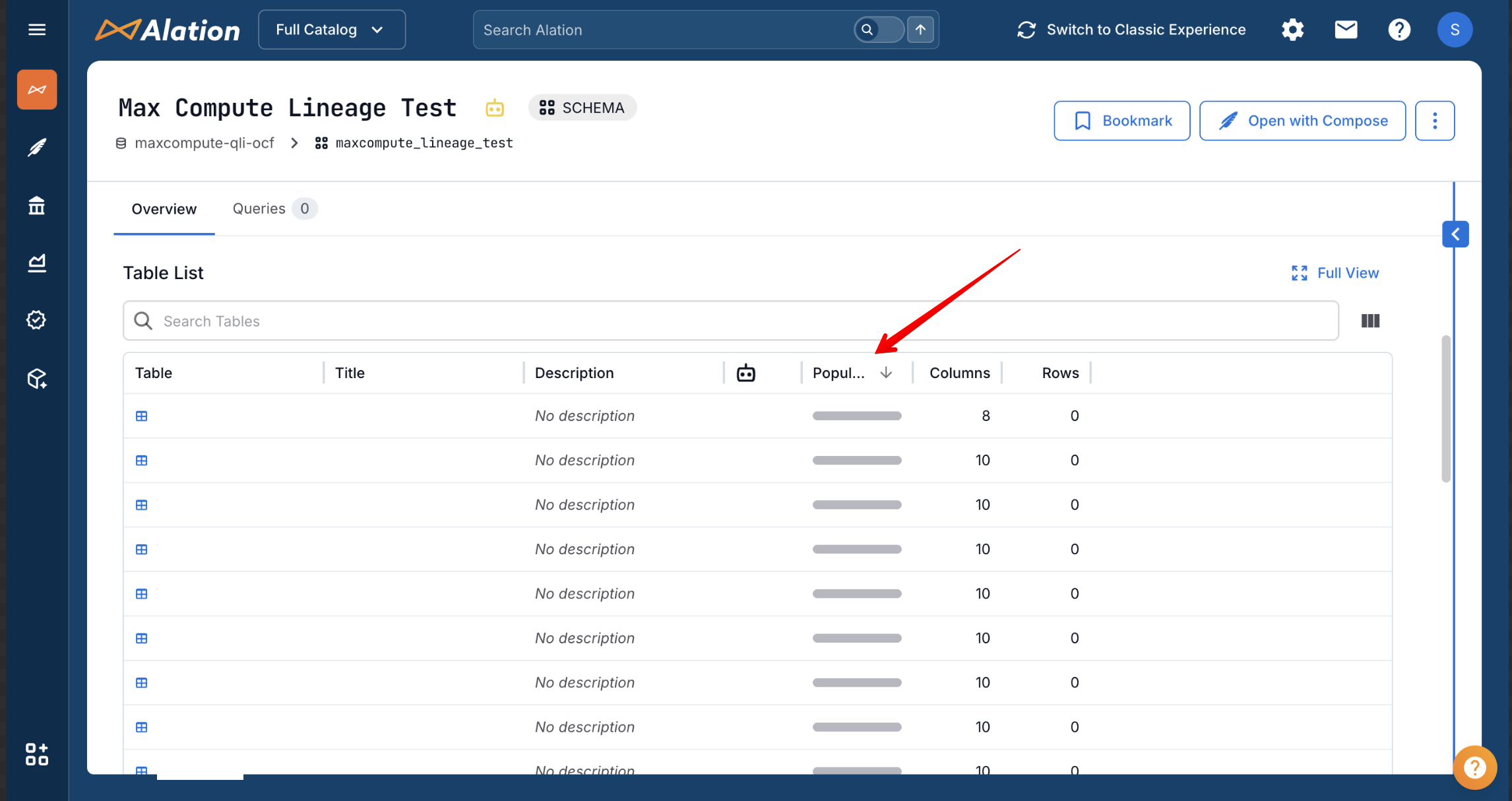

Table-level popularity:

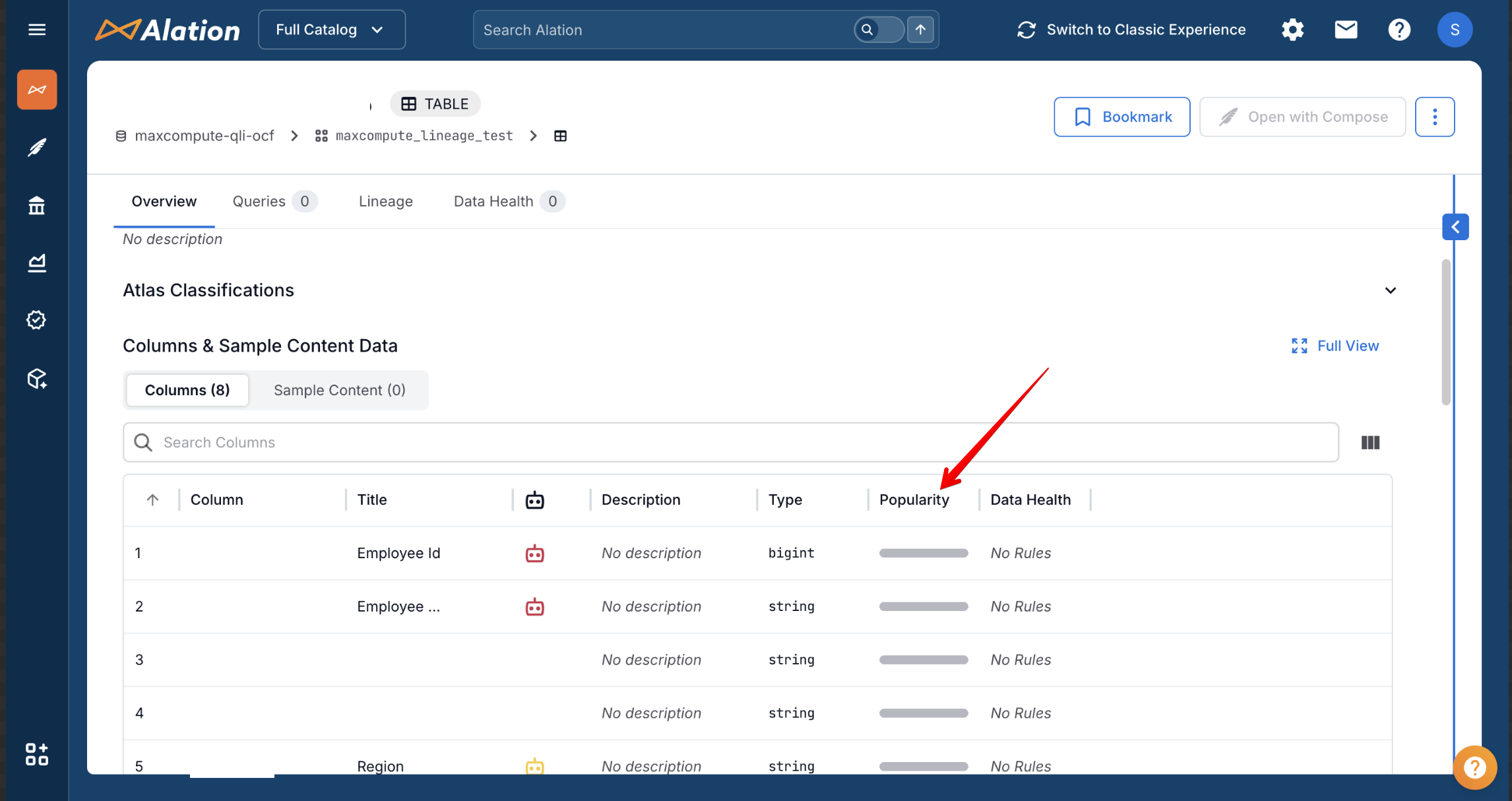

Column-level popularity:

Query History and Top Users

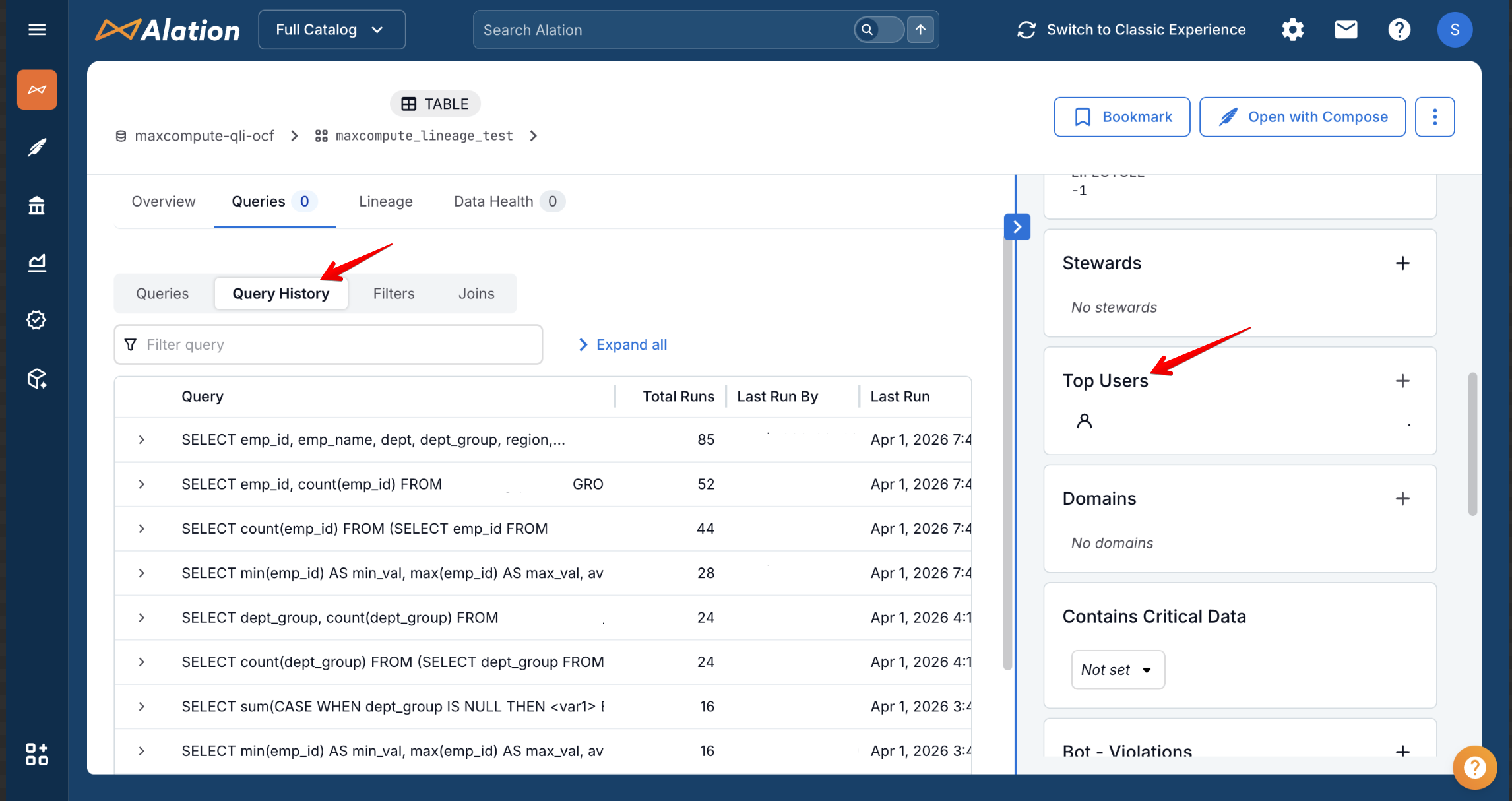

The Queries tab on table pages shows query history with total runs, last run information, and top users.

Filters and Joins

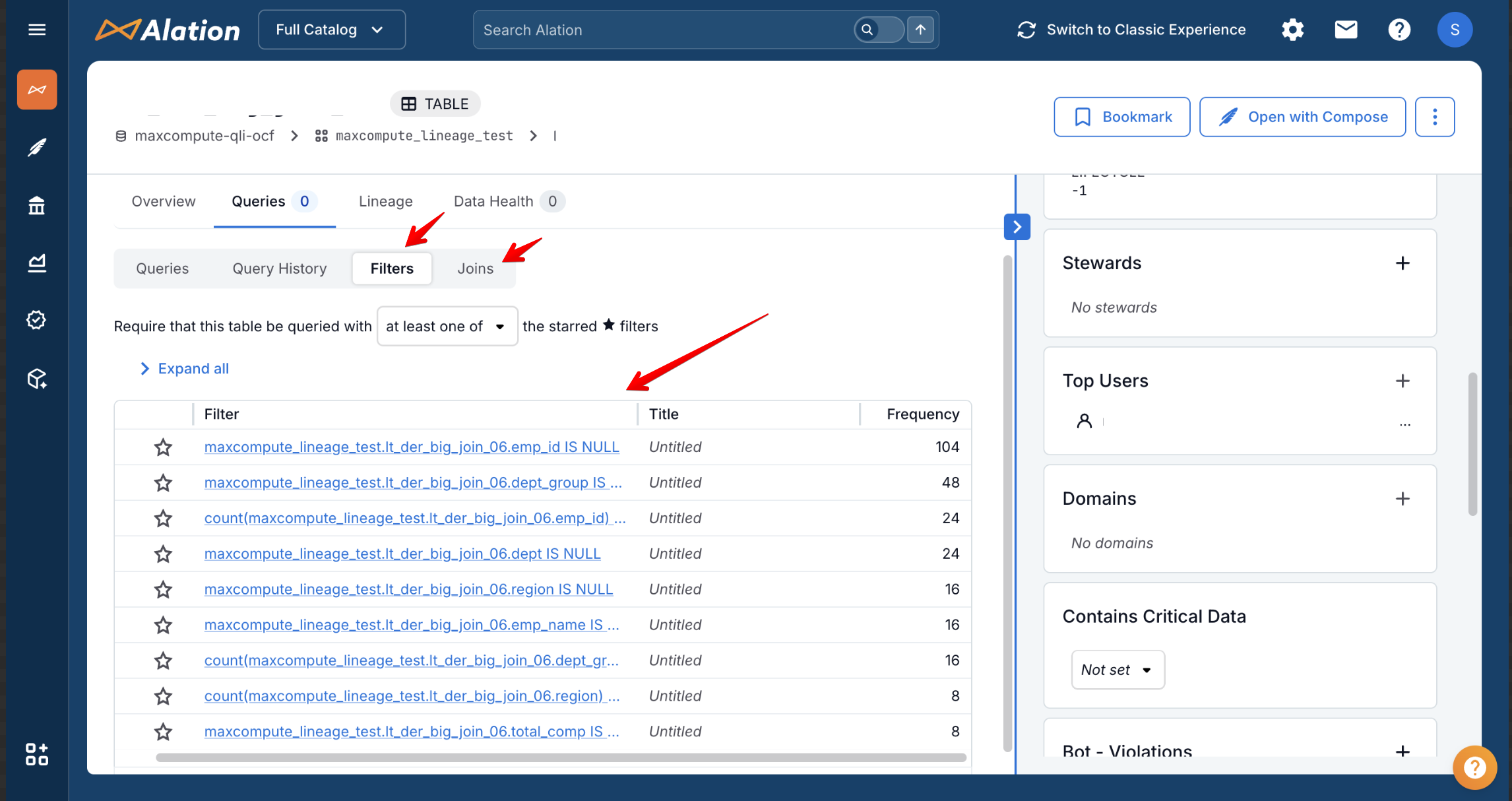

The Filters and Joins tabs show which columns are commonly used in WHERE clauses and JOIN operations.

Limitations

• QLI extracts only SELECT statements. INSERT, UPDATE, DELETE, and DDL statements are not included.

• The TASKS_HISTORY view retains query history based on your MaxCompute configuration. Older queries may not be available.

• QLI requires the infoschema_admin role, which must be assigned at the tenant level (not project level).

• Large query volumes may require limiting the date range or query count to manage extraction time.

Troubleshooting

QLI Preview Shows No Results

• Verify the RAM user has the infoschema_admin role assigned at the tenant level.

• Check that SELECT queries have been executed within the specified date range.

• Ensure JDBC connectivity to the MaxCompute service endpoint (port 80).

Permission Denied Errors

• The infoschema_admin role must be assigned via the MaxCompute Console under Tenants > Users, not through RAM policies.

• Verify the role grants access to acs:odps:*:catalogs/system_catalog/schemas/information_schema.

Queries Missing from Results

• Only SELECT statements are extracted. Other query types are excluded.

• Check if the queries fall within the configured date range.

• Verify project filters are not excluding the relevant projects.
